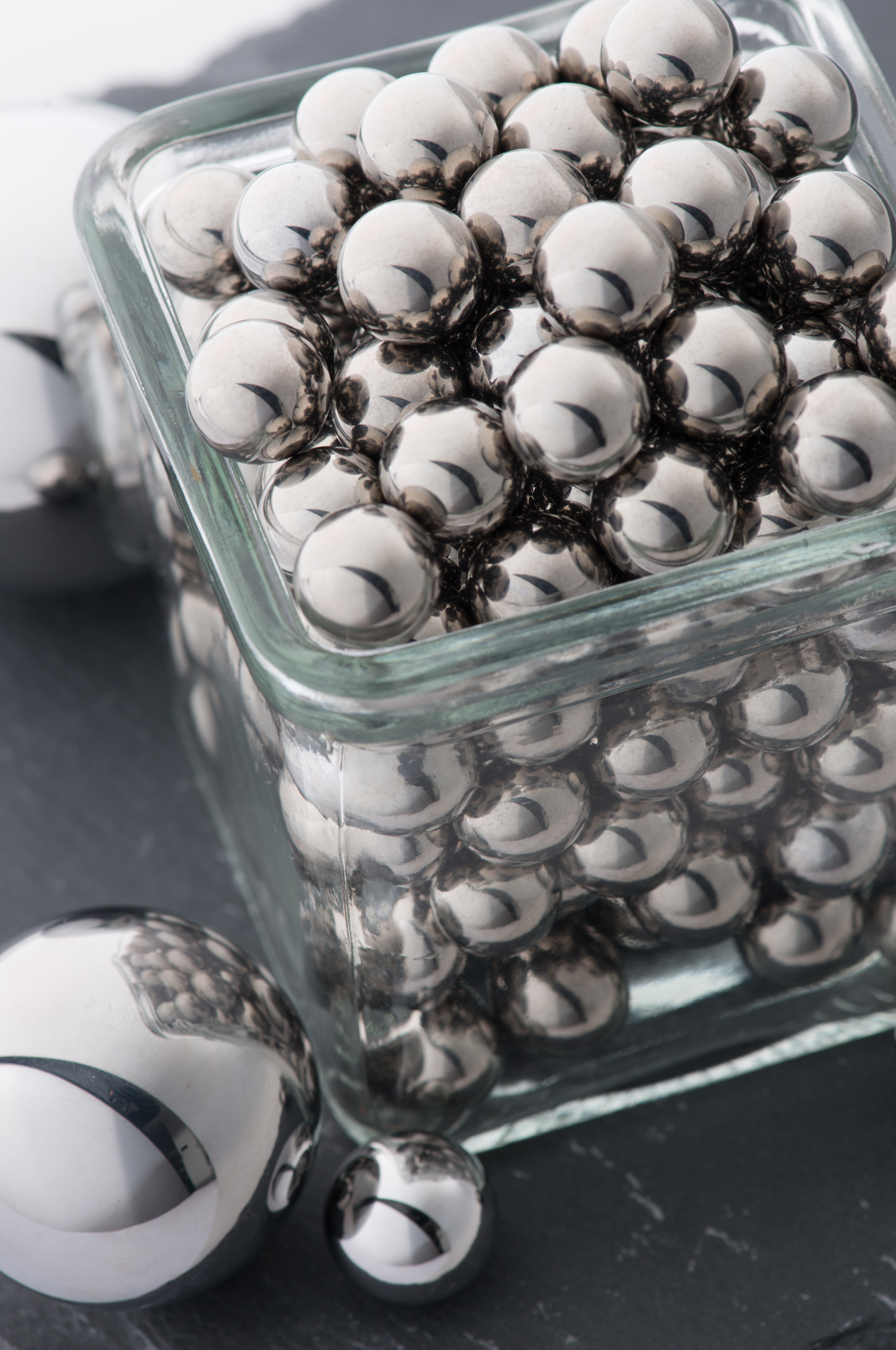

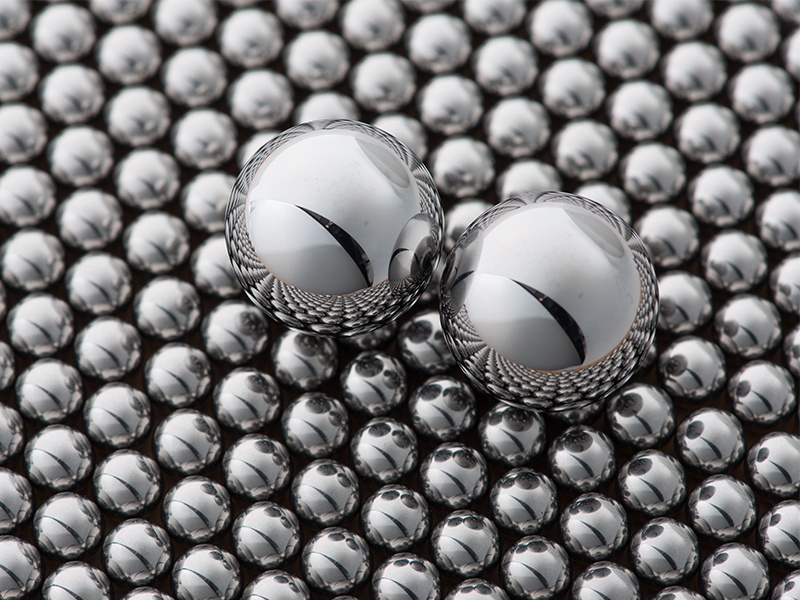

Stainless Steel Ball 300 Series


Availability:

Inquire Add to Basket

Austenitic stainless steel balls are a type of ball bearings made from austenitic stainless steel, which is a high-performance alloy known for its excellent corrosion resistance and strength. These balls are commonly used in applications where the bearing is exposed to corrosive environments, such as in food processing machinery, chemical plants, marine equipment, medical equipment, and other demanding industrial applications. They are also used in precision instruments, valves, locks, and other applications where high strength and corrosion resistance are required. Austenitic stainless steel balls are typically available in a range of sizes and grades to meet specific application requirements.

Product Description

Material： AISI 302/304/304L/316/316L (SUS)

Diameters: 0.8mm to 50.8mm

Precision grades: GB/T308 & ISO3290 G40-G100-G200

AFBAM G500/G1000

Chemical Compostion %
Material	C	Si	Mn	P	S	Cr	Ni
AISI 302	0.15 max	1.00 max	2.00 max	0.045 max	0.03 max	17.0/19.0	8.0/10.0
AISI 304	0.07 max	1.00 max	2.00 max	0.045 max	0.03 max	17.0/19.0	8.5/10.5
AISI 304L	0.03 max	1.00 max	2.00 max	0.045 max	0.03 max	18.0/20.0	8.0/12.0

Mechanical Properties
Tensile strength	100,000	to	180,000	psi
Yield strength	50,000	to	150,000	psi
Modulus of elasticity	29,000,000	psi
Elongation in two inches	10	to	50	%
Reduction in area	55	to	65	%
Density	7.93	g/cm3

Chemical Compostion %
Material	C	Si	Mn	P	S	Cr	Ni
AISI 316	0.07 max	1.00 max	2.00 max	0.045 max	0.03 max	16.5/18.5	10.0/13.0
AISI 316L	0.03 max	1.00 max	2.00 max	0.045 max	0.03 max	16.5/18.5	10.0/13.0

Mechanical Properties
Tensile strength	80,000	to	120,000	psi
Modulus of elasticity	28,000,000	psi
Elongation in two inches	10	to	50	%
Reduction in area	55	to	65	%
Density	7.93	g/cm3
