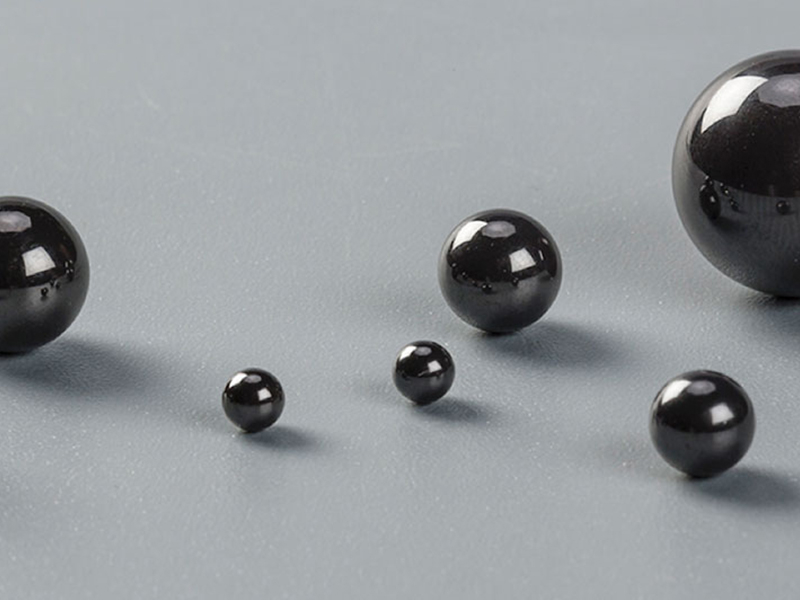

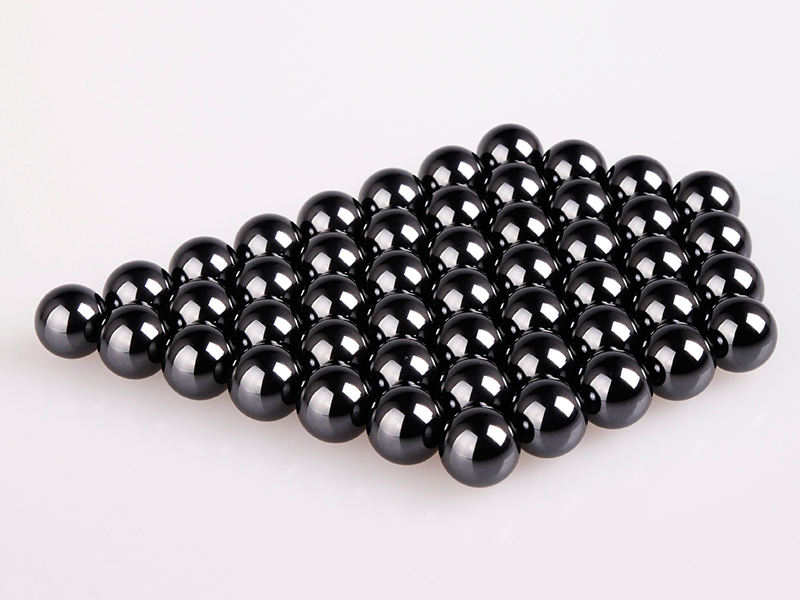

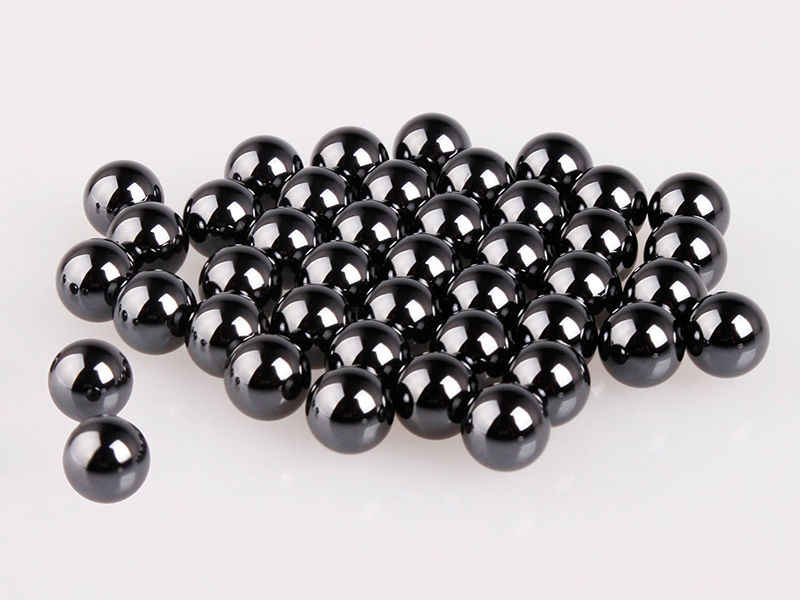

Silicon Carbide ball


Availability:

Inquire Add to Basket

Silicon carbide balls are made of a hard, brittle material that offers superior wear resistance and high temperature capability. They are commonly used in severe service applications, such as valves, pumps, and bearings, where high loads, high speeds, and aggressive chemical environments are present. Silicon carbide balls also exhibit low thermal expansion and high thermal conductivity, making them ideal for use in thermal management applications.

Product Description

Diameters: 0.8mm to 25.4mm

Precision grades: G16-G100

Standard: ISO3290

Material		Products
Silicon Carbide	SiC	Best corrosion resistance of the ceramics. It has corrosion resistance to hydrofluoric acid and mixed strong acid together with very high hardness, wearance resistance and high temperature resistance.

Applications:

* Bearings for machine tools

* Automotive parts (Drive motor bearing, Hydraulic lash adjusters, common rail injectors)

* Wind power generation (Generators)

* Ceramic bearings, Petroleum exploration

Ball Grade	Ball diameter variation （μm）	Deviation from spherical form （μm）	surface roughness （μm）	Batch diameter variation （μm）
G3	0.08	0.08	0.01	0.13
G5	0.13	0.13	0.014	0.25
G10	0.25	0.25	0.02	0.5
G16	0.4	0.4	0.025	0.8
G20	0.5	0.5	0.032	1
G24	0.6	0.6	0.04	1.2
G28	0.7	0.7	0.05	1.4
G40	1	1	0.06	2
G60	1.5	1.5	0.08	3
G100	2.5	2.5	0.1	5
Standard：ISO3290:2009
